This document will cover how to set up an IDEMIA biometric reader using direct integration in Identity Access.

Requirements
An IDEMIA Biometric reader (Sigma Wide, Sigma Lite, Sigma Lite + or Sigma Extreme)
PC running Identity Access (IA) with a Professional or Enterprise license.

Within Identity Access an IDEMIA reader can either be used in Access Control Unit (ACU) mode or Standalone Mode. ACU mode is recommended to be used on higher security doors i.e. perimeter doors or doors that require advanced access control features, such as Time Zones or Lockdowns. Standalone mode is a more cost-effective option and is great for lesser security doors, such as internal office doors or time and attendance stations.

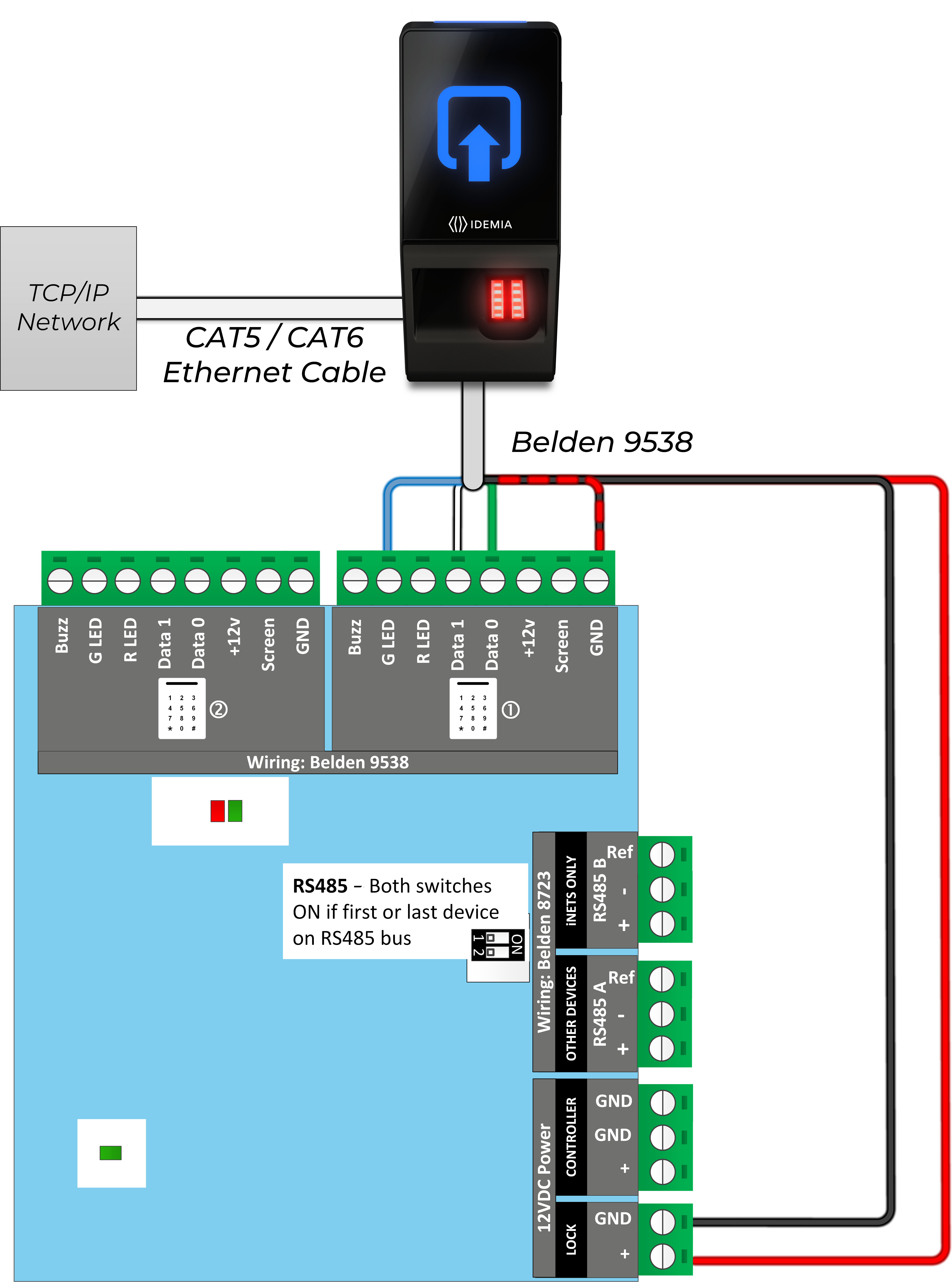

Wiring - Access Control Unit (ACU) Mode



SIGMA Lite, SIGMA Lite +, SIGMA, SIGMA Extreme Readers, MorphoWave Compact and VisionPass Connections
iNet Connection
IDEMIA Connection
Colour
Wiegand Ground
Wiegand_Gnd
Black/Red
Data 0
Wiegand_Out0
Green
Data 1
Wiegand_Out1
White
G LED
Wiegand_LEDOUT1
Blue
GND
Power GND
Black*
+12V
Power +12V
Red*

* Sigma Series readers can be powered from a +12v source, the iNet’s “LOCK” connector OR PoE.
Never power IDEMIA readers from the iNet’s reader port as it cannot supply the required current.
Always use BELDEN 9538 or an equivalent cable between the IDEMIA reader and the controller.
A network connection is required to the reader for biometric templates to be downloaded to the device.

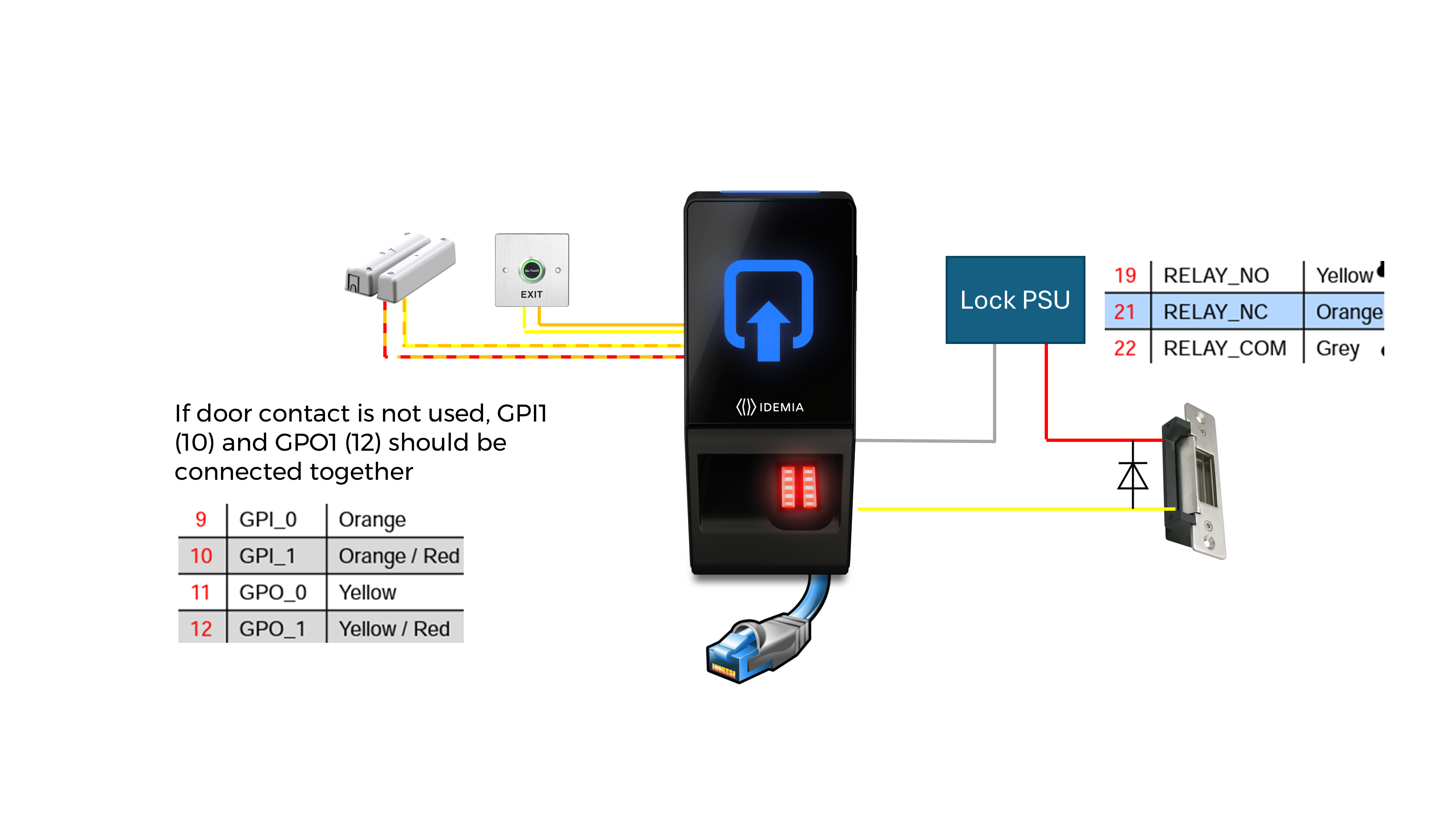

Wiring - Standalone Mode


Addressing the reader

Once the reader is powered up, we must give it an address on the network. By default, the reader will have a static IP address of 192.168.1.10 therefore your PC must be in the same IP range to communicate with the device.

1. On the Identity Access PC, in the Windows search bar type "Control Panel". Select the Control Panel app.



2. In the top right hand corner, ensure "View by" has "Large Icons" checked. Select "Network and Sharing Centre".


3. Select "Change adapter settings" on the left hand pane


4. Right click on "Ethernet" and select "Properties"


5. Scroll down and select "Internet Protocol Version 4 (TCP/IPv4)", then select "Properties".

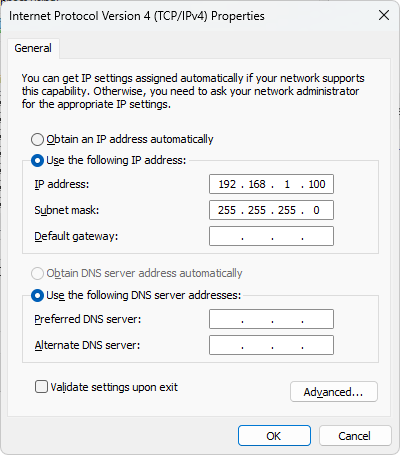

6. Select "Use the Following IP Address". For the "IP address" type in "192.168.1.100". For the "Subnet mask" type in "255.255.255.0". The Default Gateway, Preferred DNS and Alternate DNS settings can remain blank.

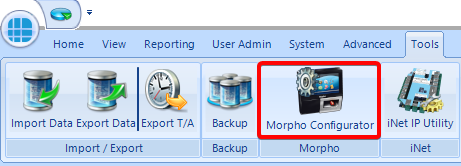

7. Open Morpho Configurator

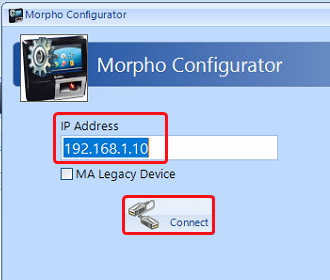

8. Ensure the IP address is correct and click 'Connect'


9. When connected you will see the current IP address details.

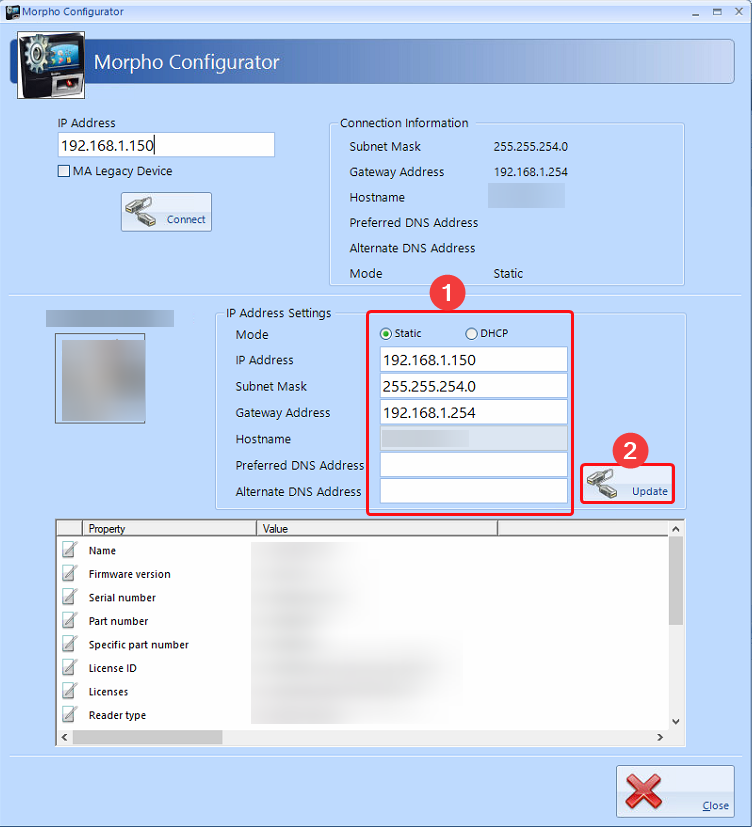

10. Type the IP address, Subnet Mask and Gateway and DNS you require, you may need to check with the sites the IT team if you are unsure.
11. Click on  ‘Update’.
12. Give the device a few seconds and it will be on its new address.

After changing the address, please ensure your computer can communicate with the device and change the PC network settings back to as they were.


Adding the reader to Identity Access

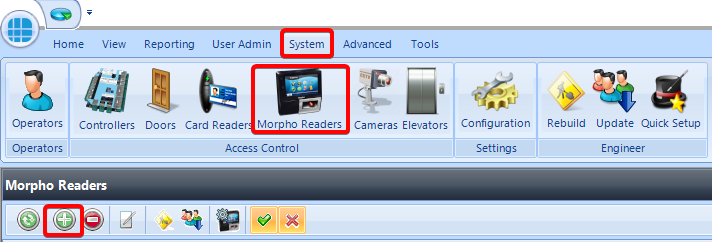

1. Within Identity Access, go to System and select "Morpho Readers". Then click the ‘plus' symbol to add a new reader.

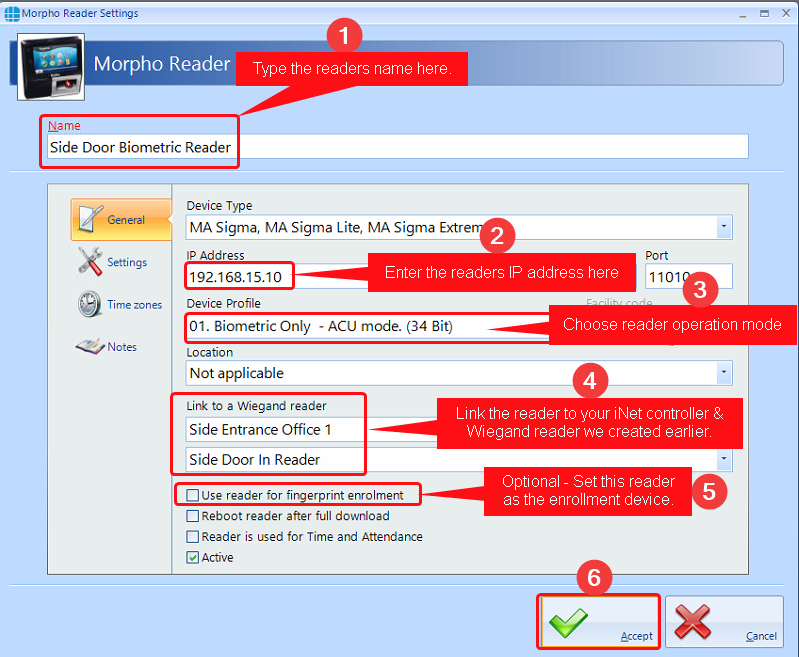

2. Give the Reader a name, type the IP address of the Biometric reader and select the required Device Profile. Once done, click Accept.
If you are using the reader with Cards/Fobs there are specific modes for the card type you may have. Listed in the appendix of this guide is a list of all device modes and what they are used for.


Enrolling Fingerprints in Identity Access

Ensure your USB enrolment reader is plugged in if you are enrolling at the PC.

1. Go to User Admin and select Employees
2. Click the 'plus' symbol

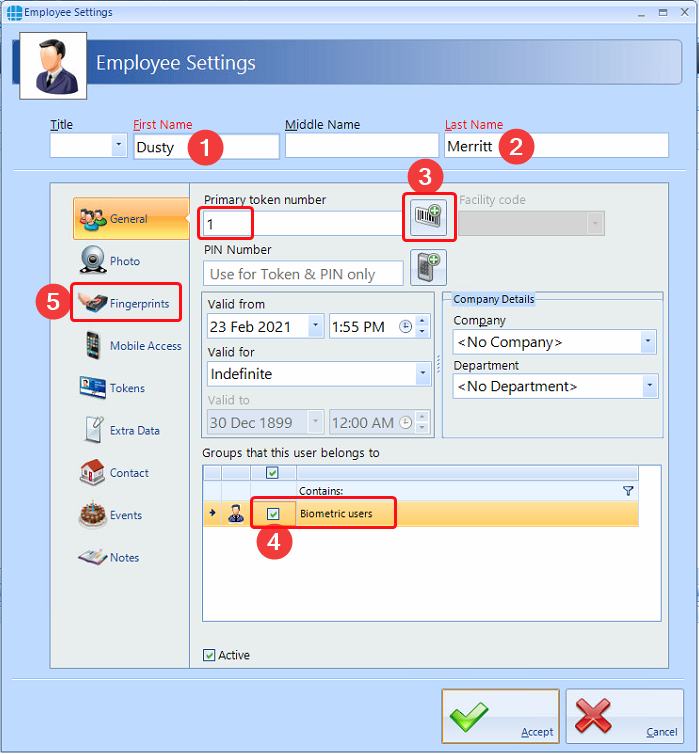

3. Give the employee a name, then if this is a bio only user, click the button shown below (3) to generate a number or enter the card number you intend to use on the device as the Primary token number. Give the employee access to the group (4).
4. Once you have done this, click the Fingerprints tab on the left (5)

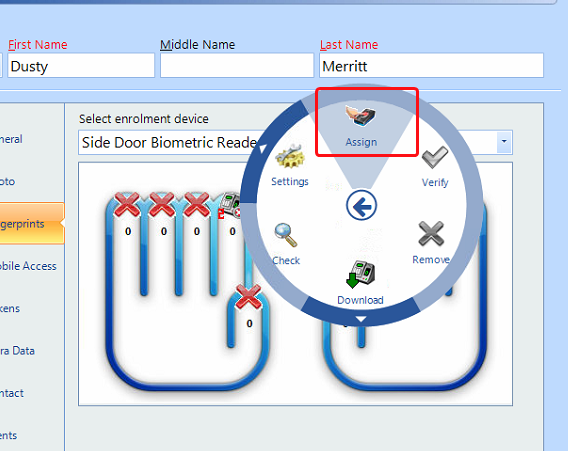

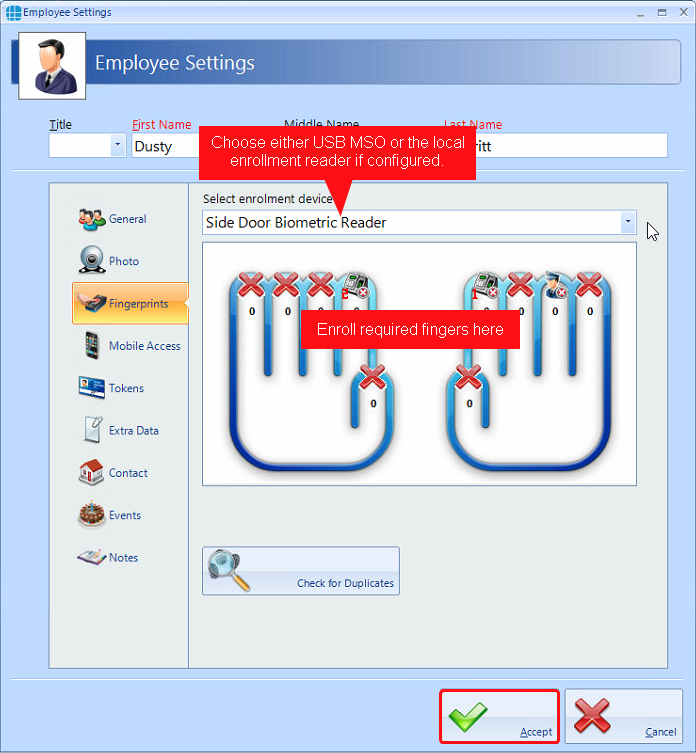

5. Select the enrolment device and then click the required finger and select ‘Assign’.


6. Each finger must be presented to the reader 3 times for accurate enrolment. See the example below. Fingerprints blurred for privacy.

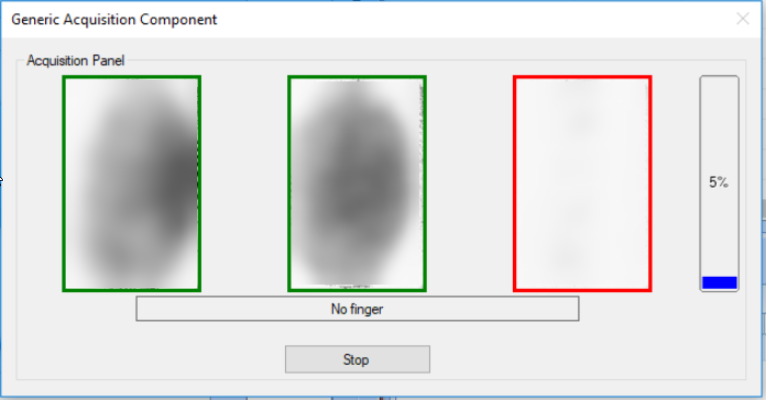

Below is an example of a good enrolment. If your score is below 100, you should try and re-enrol with a better score.















If people have particularly dry hands, this can give you a bad enrolment, you may need to issue a card for these users so ensure you have a Sigma series reader with a built-in card reader.

After enrolling the fingerprints, click "Accept" to download the fingerprints to the reader. Give the reader around a minute for it to complete the download.

Appendix

Device Profile Types

Device Profile
Use Case
Acceptable Verification Type
Applicable Reader
External
Identity Access does not set the readers configuration. The reader configuration must be set by external means i.e. via Morpho Bio Toolbox (MBTB)
Fingerprints
All Sigma Wide, Sigma Lite, Sigma Lite + and Sigma Extreme models
01. Biometric Only - ACU Mode. (26 bit)
The reader will only accept fingerprints and sends the data as a 26 bit card number to the door controller. (Largest acceptable Primary Token number 65535)
Fingerprints
All Sigma Wide, Sigma Lite, Sigma Lite + and Sigma Extreme models
01. Biometric Only - ACU Mode. (34 Bit)
The reader will only accept fingerprints and sends the data as a 34 bit card number to the door controller. (Largest acceptable Primary Token Number 4294967295)
Fingerprints
All Sigma Wide, Sigma Lite, Sigma Lite + and Sigma Extreme models
02. Biometric Only - Standalone mode.
The reader will only accept fingerprints and will control its own access.
Fingerprints
All Sigma Wide, Sigma Lite, Sigma Lite + and Sigma Extreme models
03. Biometric Only - Standalone mode. (T&A Enabled)
The reader will only accept fingerprints and is used as a Time and Attendance station
Fingerprints
All Sigma Wide, Sigma Lite + and Sigma Extreme models.
04. Biometric or PIN - ACU Mode. (34 Bit)
The reader will accept either Fingerprints or a PIN Number and is connected to a door controller.
Fingerprints or PIN
All Sigma Wide, Sigma Lite + and Sigma Extreme models.
05. Biometric or PIN - Standalone Mode
The reader will accept fingerprints or a PIN number and will control its own access.
Fingerprints or PIN
All Sigma Wide, Sigma Lite + and Sigma Extreme models.
06. Biometric or PIN - Standalone Mode (T&A Enabled)
The reader will accept fingerprints or a PIN Number and is used as a Time and Attendance station
Fingerprints or PIN
All Sigma Wide, Sigma Lite + and Sigma Extreme models.
07. Biometric or Mifare CSN 34 Bit - ACU Mode
The reader will accept fingerprints or a Mifare card and is connected to a door controller.
Fingerprints or Mifare Token (Part No. IA-MFC / IA-MFK)
Sigma Wide Multi, Sigma Lite Multi, Sigma Lite + Multi and Sigma Extreme Multi
08. Biometric or Mifare CSN 34 Bit - Standalone Mode
The reader will accept fingerprints or a Mifare card and will control its own access.
Fingerprints or Mifare Token (Part No. IA-MFC / IA-MFK)
Sigma Wide Multi, Sigma Lite Multi, Sigma Lite + Multi and Sigma Extreme Multi
09. Biometric or Mifare CSN 34 Bit - Standalone Mode (T&A Enabled)
The reader will accept fingerprints or a Mifare card and is used as a Time and Attendance station
Fingerprints or Mifare Token (Part No. IA-MFC / IA-MFK)
Sigma Wide Multi, Sigma Lite + Multi and Sigma Extreme Multi
10. Biometric and Mifare CSN 34 Bit - ACU Mode
The reader requires both a card and fingerprint, and is connected to a door controller.
Fingerprints AND Mifare Token (Part No. IA-MFC / IA-MFK) [Dual Authentication]
Sigma Wide Multi, Sigma Lite Multi, Sigma Lite + Multi and Sigma Extreme Multi
11. Biometric and Mifare CSN 34 Bit - Standalone Mode
The reader requires both a card and fingerprint, and will control its own access.
Fingerprints AND Mifare Token (Part No. IA-MFC / IA-MFK) [Dual Authentication]
Sigma Wide Multi, Sigma Lite Multi, Sigma Lite + Multi and Sigma Extreme Multi
12. Biometric and Mifare CSN 34 Bit - Standalone Mode (T&A Enabled)
The reader requires both a card and fingerprint, and is used as a Time and Attendance station
Fingerprints AND Mifare Token (Part No. IA-MFC / IA-MFK) [Dual Authentication]
Sigma Wide Multi, Sigma Lite + Multi and Sigma Extreme Multi
13. Biometric or HID Prox 26 bit - ACU Mode
The reader will accept fingerprints or a HID Prox card encoded with Standard 26 bit and is connected to a door controller.
Fingerprints or HID Prox Token (Part No. HID-1386 / HID-1346. Encoded with Format H10301)
Sigma Wide Prox, Sigma Lite Prox, Sigma Lite + Prox and Sigma Extreme Prox
14. Biometric or HID Prox 26 bit - Standalone Mode
The reader will accept fingerprints or a HID Prox card encoded with Standard 26 bit and will control its own access.
Fingerprints or HID Prox Token (Part No. HID-1386 / HID-1346. Encoded with Format H10301)
Sigma Wide Prox, Sigma Lite Prox, Sigma Lite + Prox and Sigma Extreme Prox
15. Biometric or HID Prox 26 bit - Standalone Mode (T&A Enabled)
The reader will accept fingerprints or a HID Prox card encoded with Standard 26 bit and is used as a Time and Attendance station.
Fingerprints or HID Prox Token (Part No. HID-1386 / HID-1346. Encoded with Format H10301)
Sigma Wide Prox, Sigma Lite + Prox and Sigma Extreme Prox
16. Biometric and HID Prox 26 bit - ACU Mode
The reader requires both a card and fingerprint, and is connected to a door controller.
Fingerprints AND HID Prox Token (Part No. HID-1386 / HID-1346. Encoded with Format H10301)
Sigma Wide Prox, Sigma Lite Prox, Sigma Lite + Prox and Sigma Extreme Prox
17. Biometric and HID Prox 26 bit - Standalone Mode
The reader requires both a card and fingerprint, and will control its own access.
Fingerprints AND HID Prox Token (Part No. HID-1386 / HID-1346. Encoded with Format H10301)
Sigma Wide Prox, Sigma Lite Prox, Sigma Lite + Prox and Sigma Extreme Prox
18. Biometric or HID Prox 26 bit - Standalone Mode (T&A Enabled)
The reader requires both a card and fingerprint, and is used as a Time and Attendance station
Fingerprints AND HID Prox Token (Part No. HID-1386 / HID-1346. Encoded with Format H10301)
Sigma Wide Prox, Sigma Lite + Prox and Sigma Extreme Prox
19. Biometric or HID iClass 26 bit - ACU Mode
The reader will accept fingerprints or a HID iClass card encoded with Standard 26 bit and is connected to a door controller.
Fingerprints or HID iClass Token (Part No. HID-2000 / HID-2050. Encoded with Format H10301)
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
20. Biometric or HID iClass 26 bit - Standalone Mode
The reader will accept fingerprints or a HID iClass card encoded with Standard 26 bit and will control its own access.
Fingerprints or HID iClass Token (Part No. HID-2000 / HID-2050. Encoded with Format H10301)
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
21. Biometric or HID iClass 26 bit - Standalone Mode (T&A Enabled)
The reader will accept fingerprints or a HID iClass card encoded with Standard 26 bit and is used as a Time and Attendance station.
Fingerprints or HID iClass Token (Part No. HID-2000 / HID-2050. Encoded with Format H10301)
Sigma Wide iClass, Sigma Lite + iClass and Sigma Extreme iClass
22. Biometric and HID iClass 26 bit - ACU Mode
The reader requires both a card and fingerprint, and is connected to a door controller.
Fingerprints AND HID iClass Token (Part No. HID-2000 / HID-2050. Encoded with Format H10301)
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
23. Biometric and HID iClass 26 bit - Standalone Mode
The reader requires both a card and fingerprint, and will control its own access.
Fingerprints AND HID iClass Token (Part No. HID-2000 / HID-2050. Encoded with Format H10301)
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
24. Biometric and HID iClass 26 bit - Standalone Mode (T&A Enabled)
The reader requires both a card and fingerprint, and is used as a Time and Attendance station
Fingerprints AND HID iClass Token (Part No. HID-2000 / HID-2050. Encoded with Format H10301)
Sigma Wide iClass, Sigma Lite + iClass and Sigma Extreme iClass
25. Biometric or Controlsoft IA-CRD 47 bit - ACU Mode*
The reader will accept fingerprints or a Controlsoft IA-CRD and is connected to a door controller.
Fingerprints or IA-CRD / IA-FOB.
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
26. Biometric or Controlsoft IA-CRD 47 bit - Standalone Mode*
The reader will accept fingerprints or a Controlsoft IA-CRD and will control its own access.
Fingerprints or IA-CRD / IA-FOB.
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
27. Biometric or Controlsoft IA-CRD 47 bit - Standalone Mode (T&A Enabled)
The reader will accept fingerprints or a Controlsoft IA-CRD and is used as a Time and Attendance station
Fingerprints or IA-CRD / IA-FOB.
Sigma Wide iClass, Sigma Lite + iClass and Sigma Extreme iClass
28. Biometric and Controlsoft IA-CRD 47 bit - ACU Mode
The reader requires both a card and fingerprint, and is connected to a door controller.
Fingerprints AND IA-CRD / IA-FOB.
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
29. Biometric and Controlsoft IA-CRD 47 bit - Standalone Mode
The reader requires both a card and fingerprint, and will control its own access.
Fingerprints AND IA-CRD / IA-FOB.
Sigma Wide iClass, Sigma Lite iClass, Sigma Lite + iClass and Sigma Extreme iClass
30. Biometric and Controlsoft IA-CRD 47 bit - Standalone Mode (T&A Enabled)
The reader requires both a card and fingerprint, and is used as a Time and Attendance station.
Fingerprints AND IA-CRD / IA-FOB.
Sigma Wide iClass, Sigma Lite + iClass and Sigma Extreme iClass
* Most popular profile.

Any problems with any steps on this guide please contact support@controlsoft.com
