Knowledge base 199: Locating facility codes using Identity Access
It's not always clear which facility code has been encoded onto a card, but using Identity access you are able to locate this information very easily by following the steps below.
Requirements:
An iNet door controller configured for facility codes.
Identity Access version 9.1.x or above installed.
Identity Access version 9.1.x or above installed.
An access control reader that supports facility codes e.g. HID, Third Millennium etc.
Formats currently supported by the iNet door controller
H10301
H10302
H10304
H10306
H10308
H10320
H10320
H10324
Controlsoft 47-bit
Corporate 1000 35-bit
Corporate 1000 48-bit
Locating a facility code.
- Log into the Identity Access User Interface.

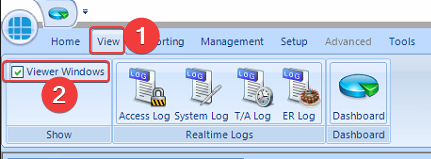

- Select View from the top menu and tick Viewer windows as shown below

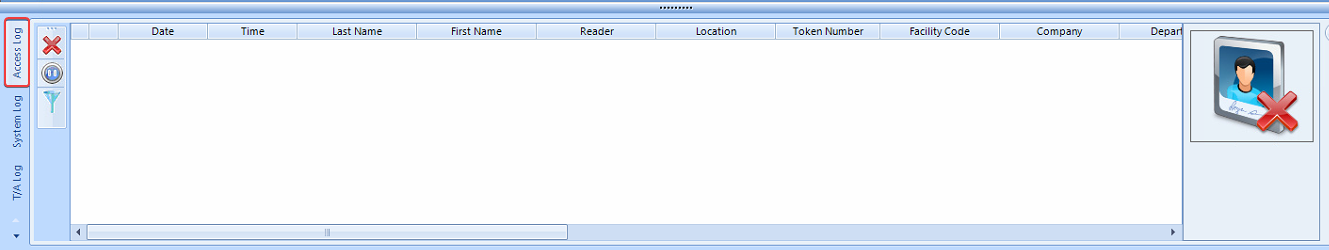

- You will now see a window at the bottom of the screen, make sure that you are looking at Access log tab by clicking Access Log from the left hand tabs -

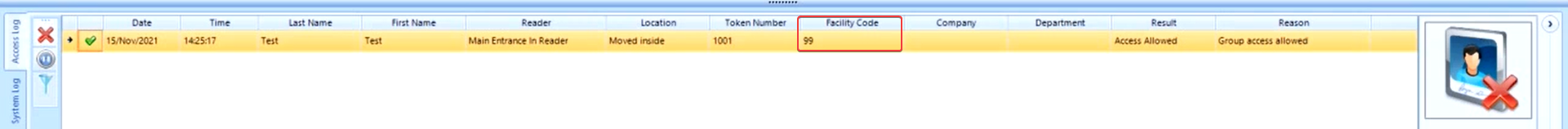

- Now badge a card on a reader, you will see in the access log viewer the facility code is displayed.
A YouTube video on configuring Facility codes in IA can also be found here - https://youtu.be/6ivUmchSoeE
Any problems with the above configuration please email support@controlsoft.com
