This Document was created using MorphoManager V15.4.3.5 and hasn’t been verified on any other versions.
Create / Edit a Biometric Device Configuration so the reader knows to looks for both Biometrics and HID Prox Card simultaneously.

      1.       Go to Biometric Device Configuration > Click Edit on the Configuration you wish to change to read HID Prox Card or Biometrics

      2.       Leave the First Screen as Default and Press Next.

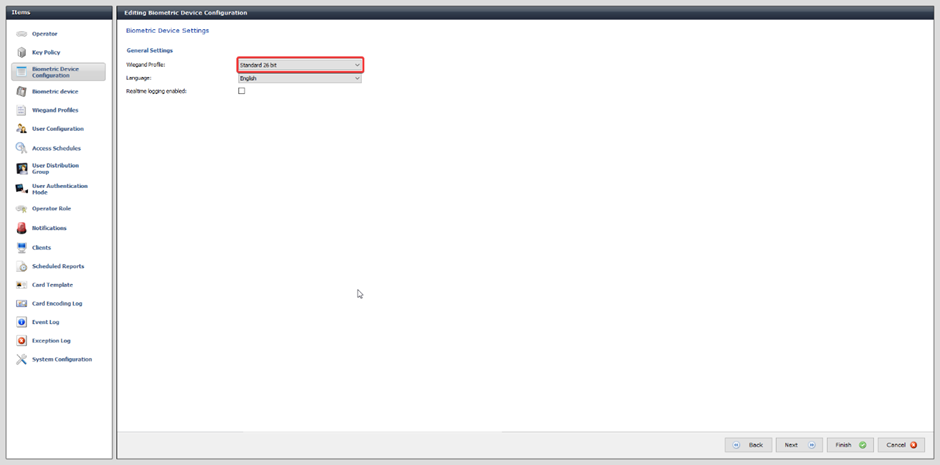

      3.       Check / Change the Wiegand Profile to Standard 26 Bit. Press Next


      4.       No changes on the Biometric Threshold Settings page.

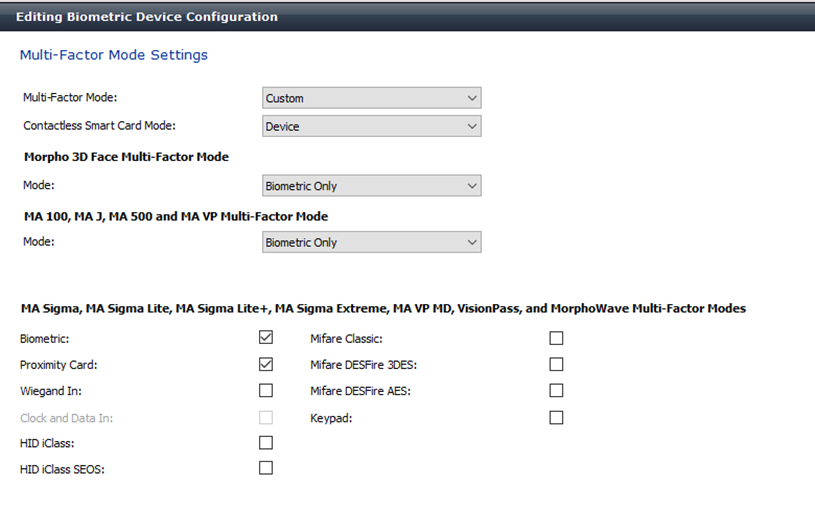

      5.       Under Multi-Factor Mode Settings. Change Multi-Factor Mode to Custom. Tick Biometric and Proximity Card to change the device to look for both. Click Finish.


Create a new User Authentication Mode

      1.       Go to User Authentication Modes > Add. Name the new Profile and Click Next.

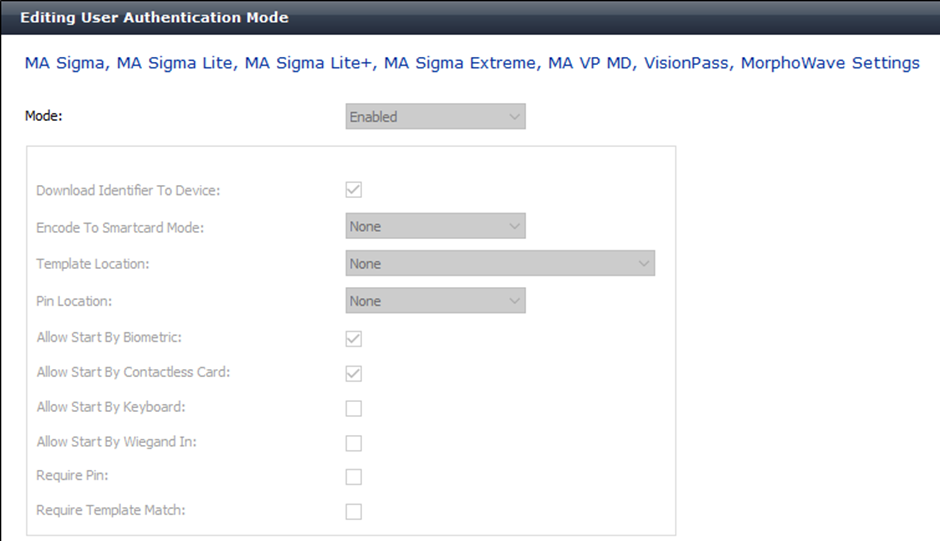

      2.       Select “Enabled”, “Download Identifier to Device”, “Allow Start By Biometric”, “Allow Start by Contactless Card”


Create a new User Configuration

      1.       Go to User Configuration and click Add

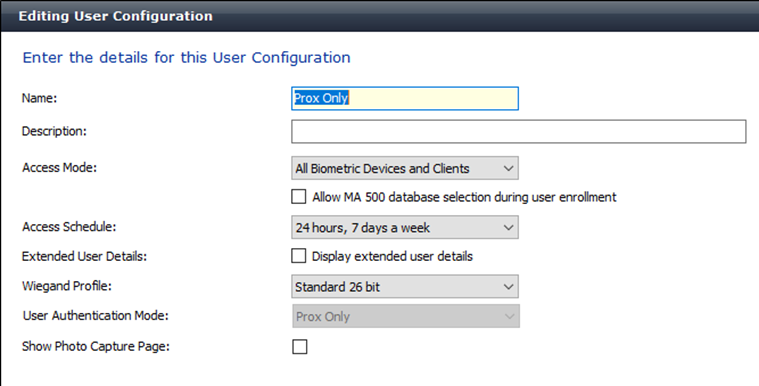

      2.       Select Wiegand Profile of “Standard 26 Bit”. Select User Authentication Mode as the one you just created. Click Next

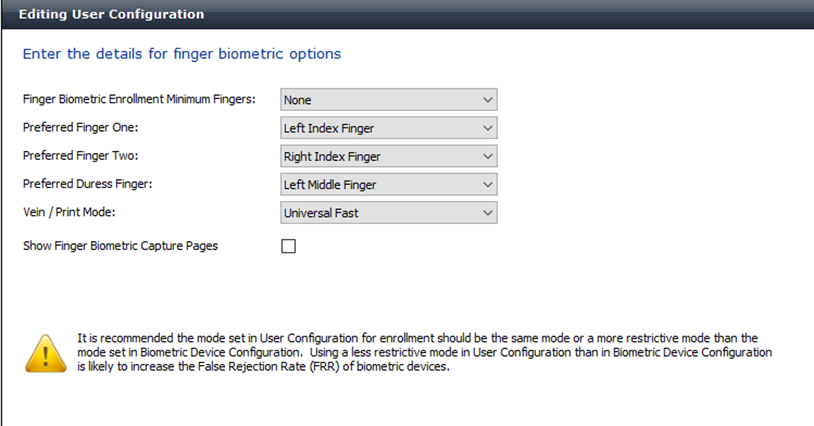

      3.       Select “Finger Biometric Enrollment Minimum Fingers” as None and Uncheck “Show Fingerprint Biometric Capture Page”. Click Finish.



Create a new User
1.       Go to Users and add a new user.

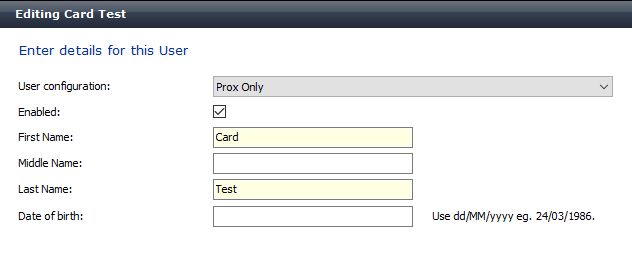

2.      Select your newly created User configuration, insert a first and last name.

3.   Click Next and Next. Insert the Card Number (missing any leading 0's) into the User ID and press finish.
4. The user will now be sent to the reader and the card will gain access / send the Wiegand information to the control unit.
