Knowledge base 86: Using Morpho Readers as Standalone Readers

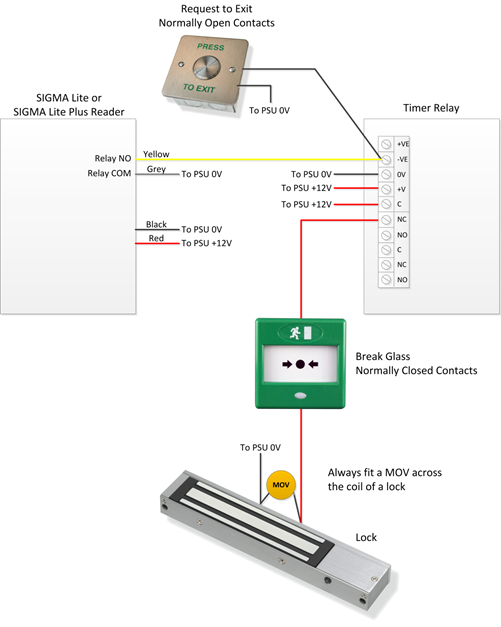

When using Morpho readers such as the J-Series,
Sigma, Sigma Lite or Sigma Lite Plus in standalone mode to control a door, we
recommend using a timer relay between the reader and the lock. This makes the system more resilient and
protects the Fingerprint readers on board relay
If using a J-Series reader, use terminal blocks RL1 (Relay
COM) and RL2 (Relay NO)Related Articles
