Knowledge 173: Wiring 2 Standalone controllers to 1 mag lock

Knowledge 173: Wiring 2 Standalone controllers to 1 mag lock

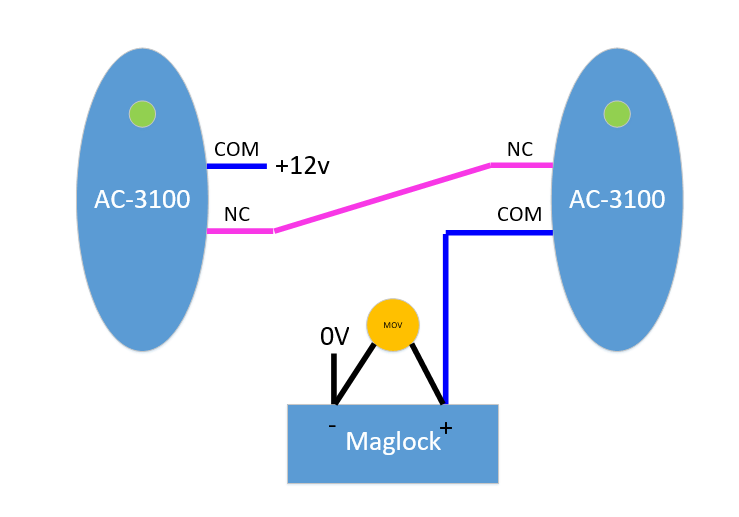

The below diagram shows how to wire in 2 standalone controllers to one mag lock, this is shown using an AC-3100 but applies to any of the standalone lines.
