Knowledgebase 189: Identifying power supplies used in Controlsoft equipment

Knowledgebase 189: Identifying power supplies used in Controlsoft equipment

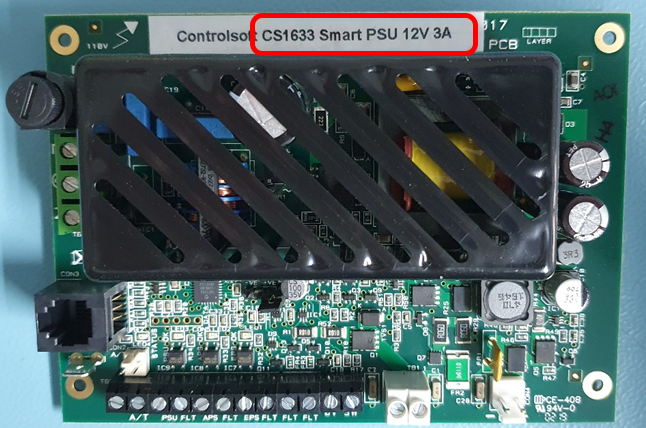

Dycon CS1633 = 3 Amp SMART power supply with 95v to 260v input. Used on IA-ACUPLUS and some older US products

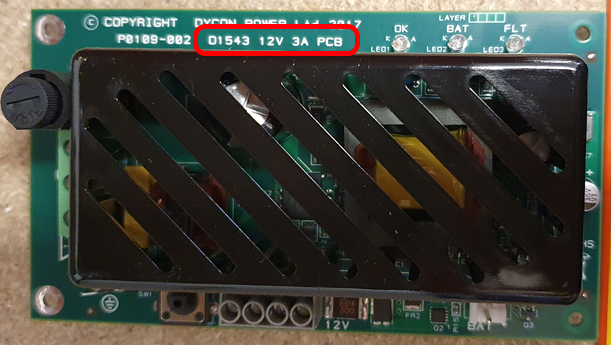

Dycon D1543  = 3 Amp power supply with 230v input.  Formally known as D1503



Dycon D1545  = 5 Amp power supply with 230v input. Formally known as D1505



Dycon D1643 = 3 Amp power supply with 120V input voltage. Previously used on some US products



Dycon D1645 = 5 Amp power supply with 120V input voltage. Previously used on some US products

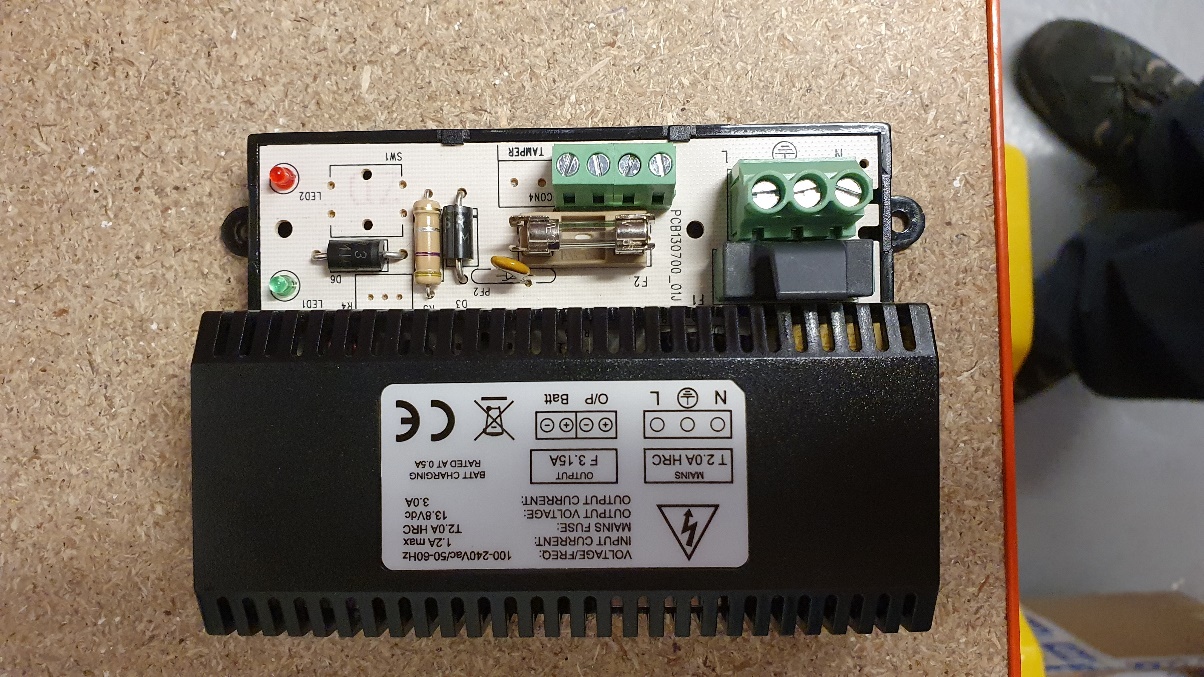

Elmdene ELM-G13803NU = 3 Amp power supply used on multiple products, replacing the D1503



Elmdene ELM-ULTRAPOD-MOD = 3 Amp PoE splitter. Used on IA-ACU-POE

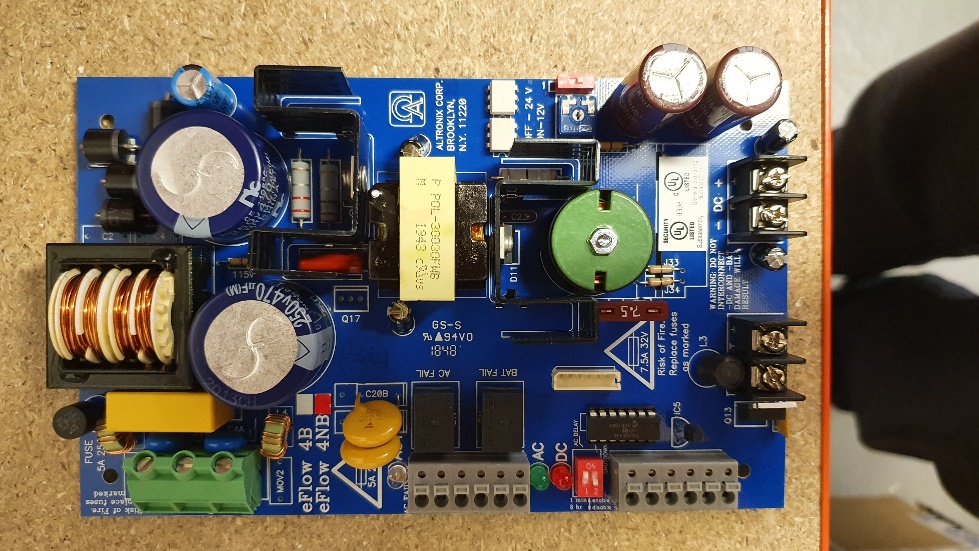

Altronix EFLOW-4NB = 4 Amp 120V input voltage used on UL approved products



Altronix AL400ULB2 =4 Amp
120V input voltage. US products
