Knowledge base 91: Using Sigma Lite with the built in Web Server
The terminal’s embedded Web
server enables easy configuration of
the devices as well as user
enrolment using a web browser on a
Desktop PC, Laptop, Tablet or smart
phone.
1. From supported OS (Windows, Android, Apple iOS) access the Sigma Lites built-in web server by typing the IP (default) 192.168.1.10 into a web browser (Google Chrome, Mozilla Firefox, Safari, Internet Explorer).

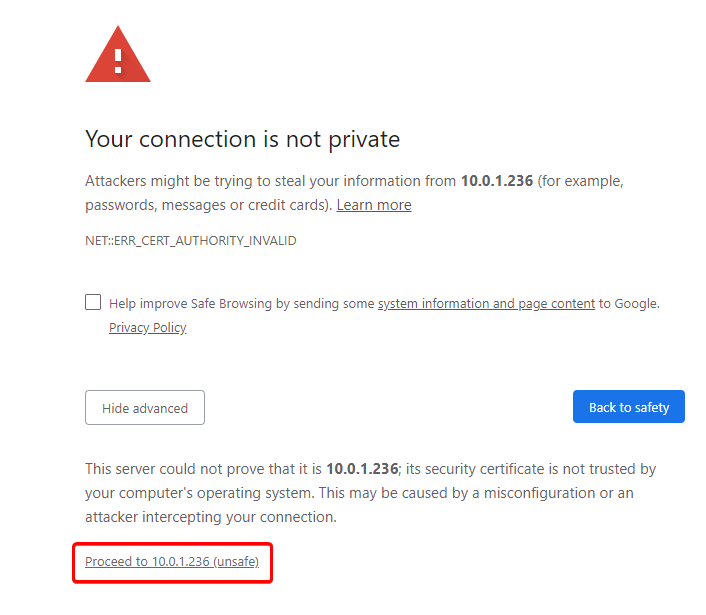

2. You may see a warning message, please click Advanced and proceed to access the login page. -
3. Default password = 12345

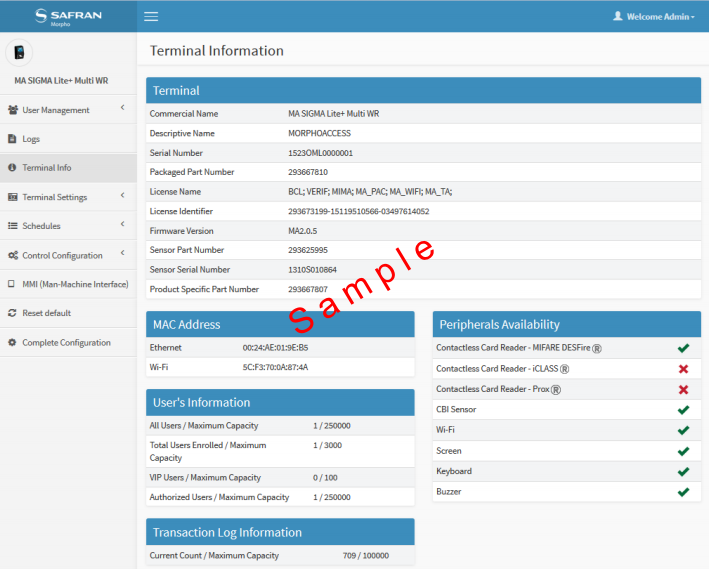

4. You will see the screen below -
5. Choose 'User Management'.

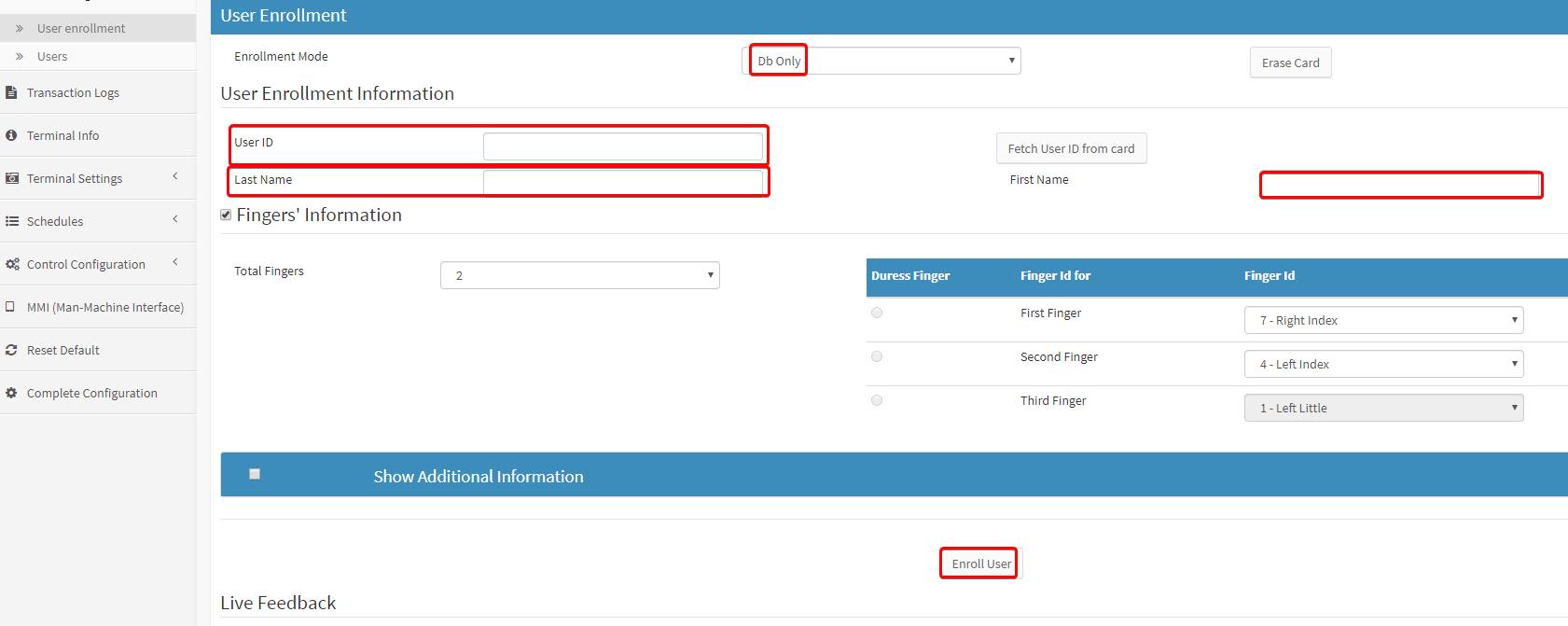

6. Next choose 'User enrollment' and complete the following fields. -

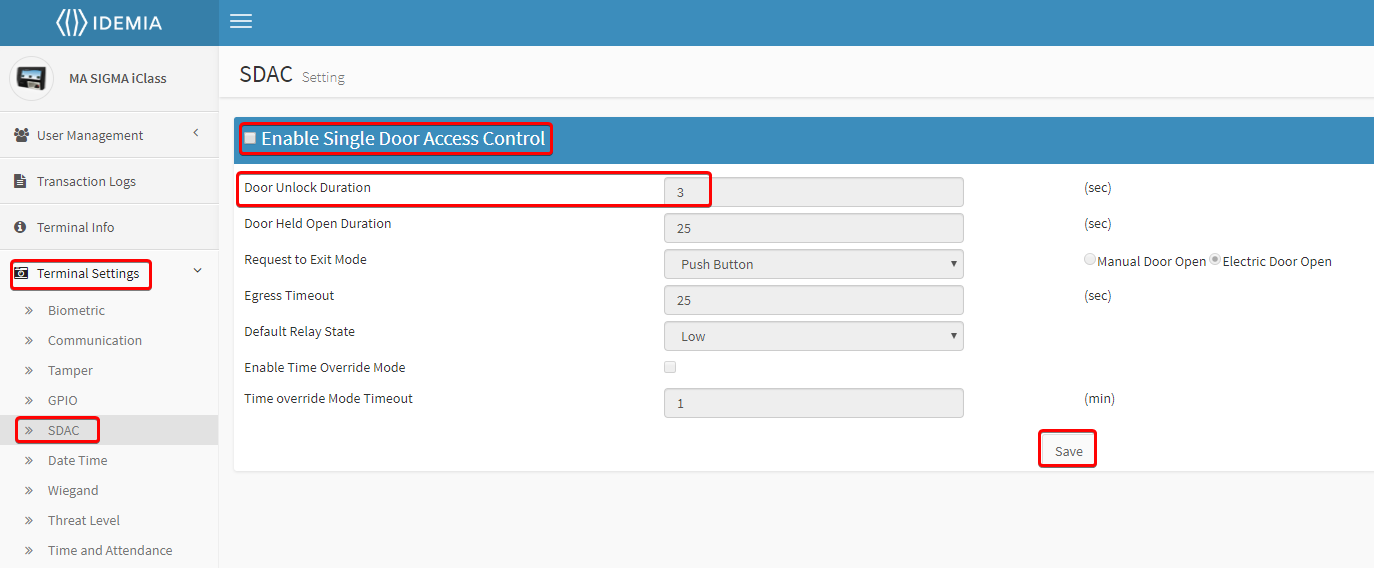

7. Once the user is enrolled, if you require the reader's relay to be enabled, please follow the screenshot below (remember to link out the door contact if it's not being used which is orange/red & yellow/red) -
