Knowledge base 107: Using SQL Backup Master to backup and restore SQL Databases.
The following Bulletin explains how to install and configure SQL Backup Master to backup and restore SQL databases.
Installing SQL Backup Master & Creating a Backup
1. Download SQL Backup Master from the following link –
2. Run the download “sbm-setup.exe” file and install.
3. At the end of the install select “Run SQL Backup Master Now”.
4. Click the “Create new database backup” button at the top of the window -
5. Click the “Choose SQL Server…” button -
6. Select the drop-down list on the right-hand side -
7. Select the SQL Server to backup -

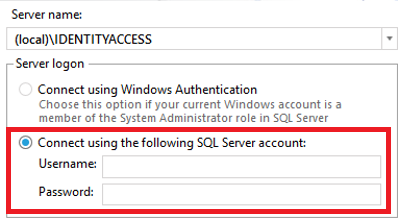

8. Now select “Connect using the following SQL Server Account”
9. Enter the following credentials –
Username = sa
Password = C0ntr0lS0ftAdm1n@!
*Please note the capital C and S in the password and Zero’s instead of O’s*
10. Click "OK"
11. Select "Show system database"
12. Select all of the following databases -
13. Next Under Destinations Click Add, for this
example
we will configure Local or Network Folder

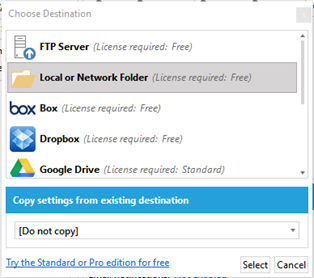

14. Select “Local or Network Folder” then press “Select”.
15. Now click “Browse”. Navigate to the folder you want to save the backup to. If this is a network drive you may need to specify Authentication Credentials.
16. Once the folder has been selected, click “OK”. Click “OK” once again.

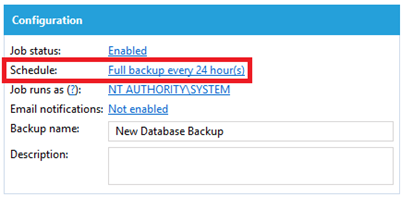

17. You can now Configure a schedule if required -
18. Make sure to give your backup a meaningful name and description if required.
19. Once you are happy with these settings click “Save”.
20. Now click “Back up now”
If you are restoring the databases on a new machine, you need need to move the database files to the same location as on the current Identity Access Server and setup a backup set as below. The backups should then be selectable as shown below.
Restoring using SQL Backup Master
Restoring Database (Version 8 / 2017 or 2016)
1. To restore a Database, first close down the Identity Access as well as the Download Server & Log the Server from the system tray.
2. Ensure there is a backup configured on the PC as per the first section of this bulletin.
3. Click "Recover".
4. Select the Backup Job you previously created.
5. Click “Recover” next to the database file you wish to restore.
The system configuration is stored under the IAMain database.
The access logs (who accessed what reader) are stored under the IAAccesslog
Under the IASystemlog are stored any software changes and RTE button activity and the IATALog stores any time and attendance logs
Under the IASystemlog are stored any software changes and RTE button activity and the IATALog stores any time and attendance logs
6. Restart Identity Access and check the data has been restored.
Restoring Database (Version 9)

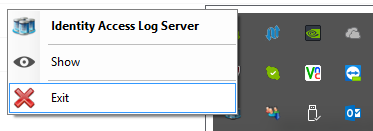

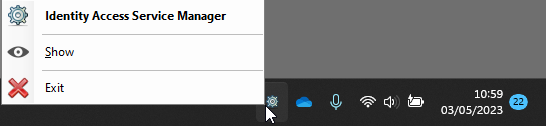

1. To restore a database, first close down the Identity Access as well as the Download Server & Log the Server from the system tray.

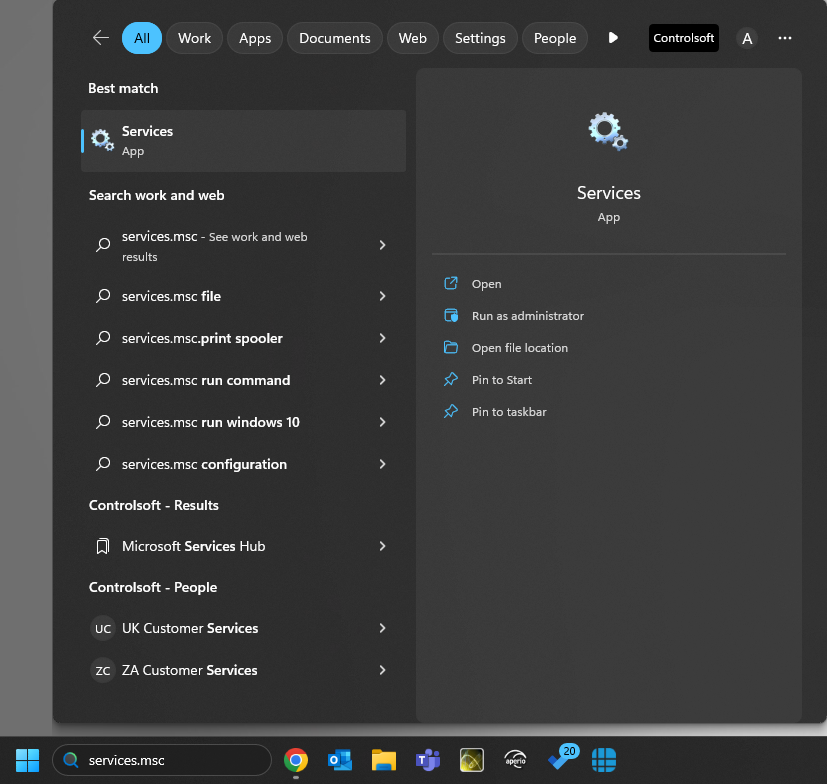

2. Go to the Windows Services, you can use the Windows Run or Search functions and type services.msc

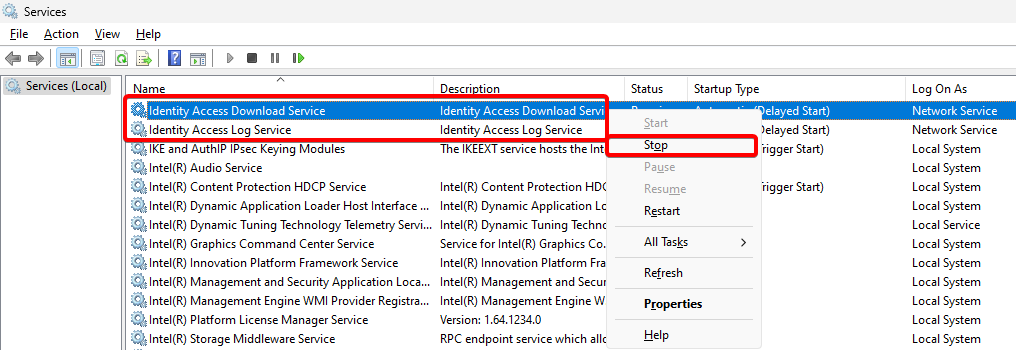

3. Find the Identity Access Download Server and Log Server in the list, right click and select "Stop".
4. Load SQL Backup Master.
5. Ensure there is a backup configured on the PC as per the first section of this bulletin.
6. Click "Recover".
7. Select the Backup Job you previously created.
8. Click “Recover” next to the database file you wish to restore.
The system configuration is stored under the IAMain database.
The access logs (who accessed what reader) are stored under the IAAccesslog
Under the IASystemlog are stored any software changes and RTE button activity and the IATALog stores any time and attendance logs
9. Restart Identity Access and check the data has been restored.
1. To restore a database, first close down the Identity Access as well as the Download Server & Log the Server from the system tray.
2. Go to the Windows Services, you can use the Windows Run or Search functions and type services.msc
3. Find the Identity Access Download Server and Log Server in the list, right click and select "Stop".
4. Load SQL Backup Master.
5. Ensure there is a backup configured on the PC as per the first section of this bulletin.
6. Click "Recover".
7. Select the Backup Job you previously created.
8. Click “Recover” next to the database file you wish to restore.
The system configuration is stored under the IAMain database.
The access logs (who accessed what reader) are stored under the IAAccesslog
Under the IASystemlog are stored any software changes and RTE button activity and the IATALog stores any time and attendance logs
Under the IASystemlog are stored any software changes and RTE button activity and the IATALog stores any time and attendance logs
9. Restart Identity Access and check the data has been restored.
Troubleshooting
Problem:

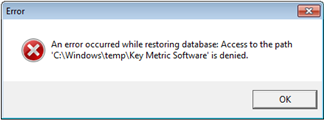

While trying to restore a database, you may encounter an error message which states ‘access to \temp\Key Metric Software is denied’.
Solution:

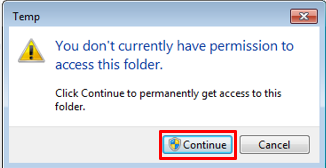

1. Open File Explorer and navigate to your C:\Windows\Temp folder. Right click on ‘Key Metric Software’ and click onto properties. When navigating to this folder, you may be prompted to click ‘continue’ on a popup window to allow access to this folder.

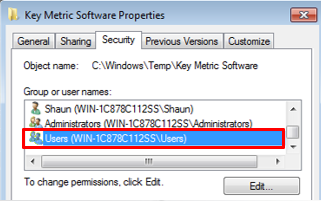

2. Once in the properties of the ‘Key Metric Software’ folder, click onto the security tab.
3. In the ‘Group or user names’ section, scroll to the group called ‘Users’ and click edit.
4. A second window will open. Make sure the ‘Users’ group is highlighted blue. In the ‘Permissions for Users’ area, select ‘modify’ in the ‘allow’ column. This will automatically tick everything below modify. After setting the permissions, click ‘Apply’.
5. You will be alerted by a Windows prompt, you need to click ‘Yes’.
6. Now you can click ‘OK’ on the permissions window and ‘OK’ on the properties window and close File explorer.
You now have permission to access the ‘Key Metric Software’ temp folder and will not receive this error preventing you from restoring a database.
