Knowledge base 169: Setting up MorphoManager with Sigma series readers in Biometric only mode

Knowledge base 169: Setting up MorphoManager with Sigma series readers in Biometric only mode

This bulletin explains how to install and configure MorphoManager with Sigma series readers for either Standalone mode or ACU mode (for use with access control systems).

Equipment required -

1. PC/Server running the following spec -
Processor: Dual Core CPU
RAM: 4 GB
Ports: Three USB ports
Network: 100Mbs Ethernet port required for client/server connections. Internet Access: Required for updates. (If no internet access is available, updates can be installed via USB memory stick or CD Rom)
Screen Resolution: 1080p

MorphoManager Server:
• Microsoft Windows 7 SP1 64-bit - KB4019990 update installed
• Microsoft Windows 8.1 64-bit - KB4019990 update installed
• Microsoft Windows 10 64-bit (Anniversary update or later)
• Windows Server 2008 R2 SP1 64-bit - KB4019990 update installed
• Windows Server 2012 64-bit - KB4019990 update installed
• Windows Server 2012 R2 64-bit - KB2919355 update installed
•Windows Server 2016 R2 64-bit

MorphoManager Client:
• Microsoft Windows 7 SP1 32-bit / 64-bit - KB4019990 update installed
• Microsoft Windows 8.1 32-bit / 64-bit - KB4019990 update installed
• Microsoft Windows 10 32-bit / 64-bit (Anniversary update or later)
• Windows Server 2008 R2 SP1 64-bit - KB4019990 update installed
• Windows Server 2012 64-bit- KB4019990 update installed
• Windows Server 2012 R2 64-bit - KB2919355 update installed

2. MSO 300/1300 enrollment reader

Installing MorphoManager -

First download the latest MorphoManager Server install file & the MorphoManager Client install file from www.morphomanager.com
Once those 2 files are downloaded please run the MorphoManager Server install. By default, the Morpho server uses a SQL compact database unless you specify otherwise during the install. (Speak to our support for assistance with SQL Express install if needed).
Install the MorphoManager client software on the same machine or a machine that can be networked back over the LAN to the MorphoManager server.

Configuring Sigma Series readers for standalone mode (mag/strike locks) or ACU Mode (iNet controller etc) -

1. Log into MorphoManager -
Username:  administrator
Password: password

2. When you log in for the first time you must register the software, generate an activation file and use the license activation portal found here

3. When you have finished registering click 'Administration'.

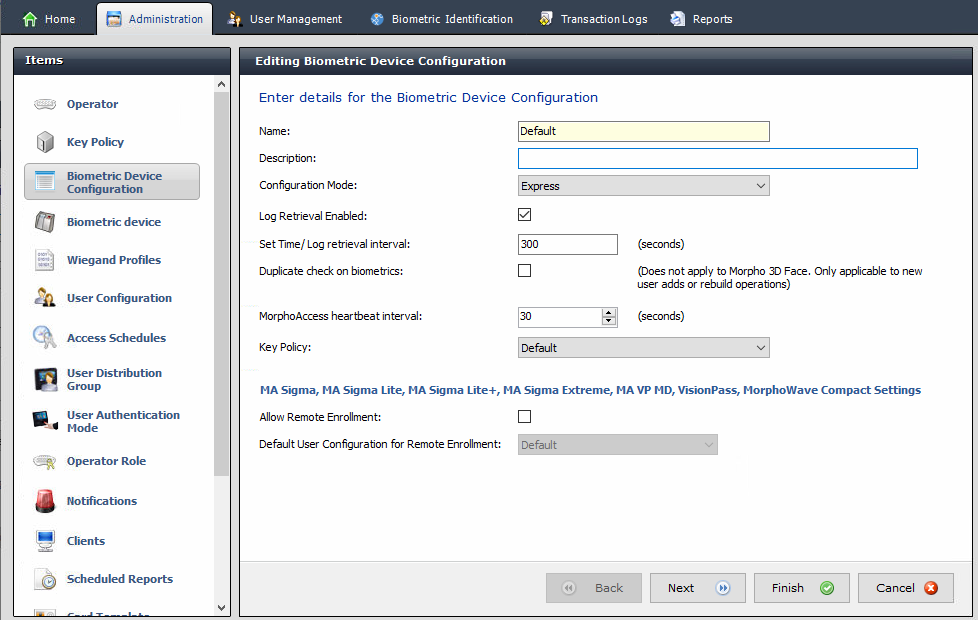

4. Click ' Biometric Device Configuration' and edit the Default profile.


5. Leave all the settings above as they are and click  Next.

6. For the wiegand profile either use the below recommendation -

If using the biometric reader in standalone mode (built-in relay)-
Keep this as the 64bit randomly generated number unless you wish to manually type an identifiable number for each enrollment
Stand-alone mode with sigma series readers requires the door contact connections (10 & 12 on the pigtail) to be linked out if not used.


Or if using the biometric ACU Mode (with an ACU) -
Set this to match the format required by your ACU controller (26bit etc) If your format isn't listed, please contact controlsoft support

7. Click Next

8. Multi-factor mode keep as Biometric Only and click Next

9. Access control mode use the following setting for the Access control mode -
Integrated (default) = For use with Access control systems to enable the wiegand output

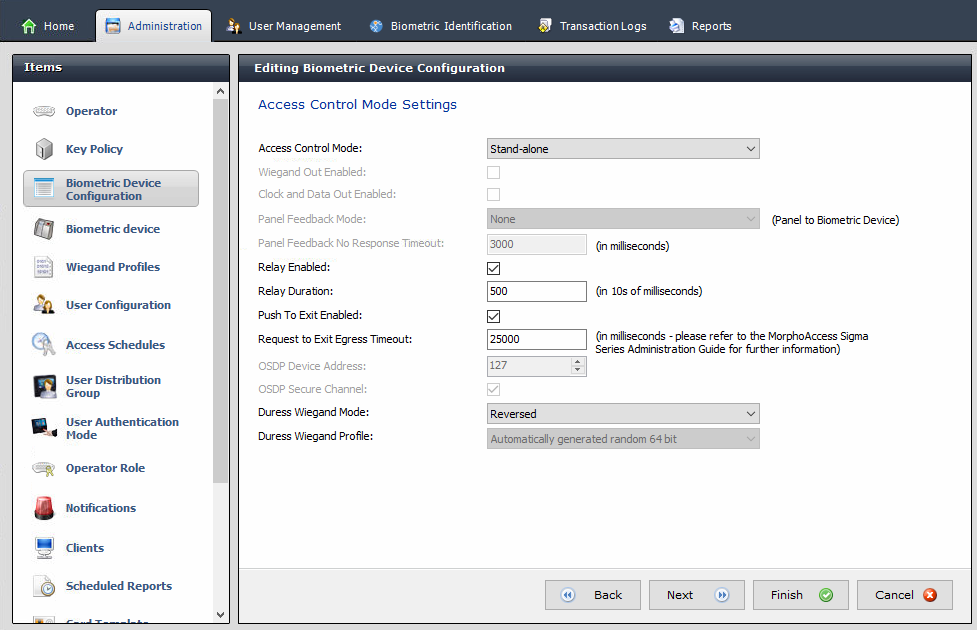

Stand-alone = For use with the onboard relay & RTE (if required) enabled by using the tick boxes shown below -


10. If you require access schedules in Standalone mode, Click Next until you see  Enable Access Schedules tick this box then click finish.

11. if access schedules aren't required, click  Finish.

12. From here choose  Biometric Device and click  Add.

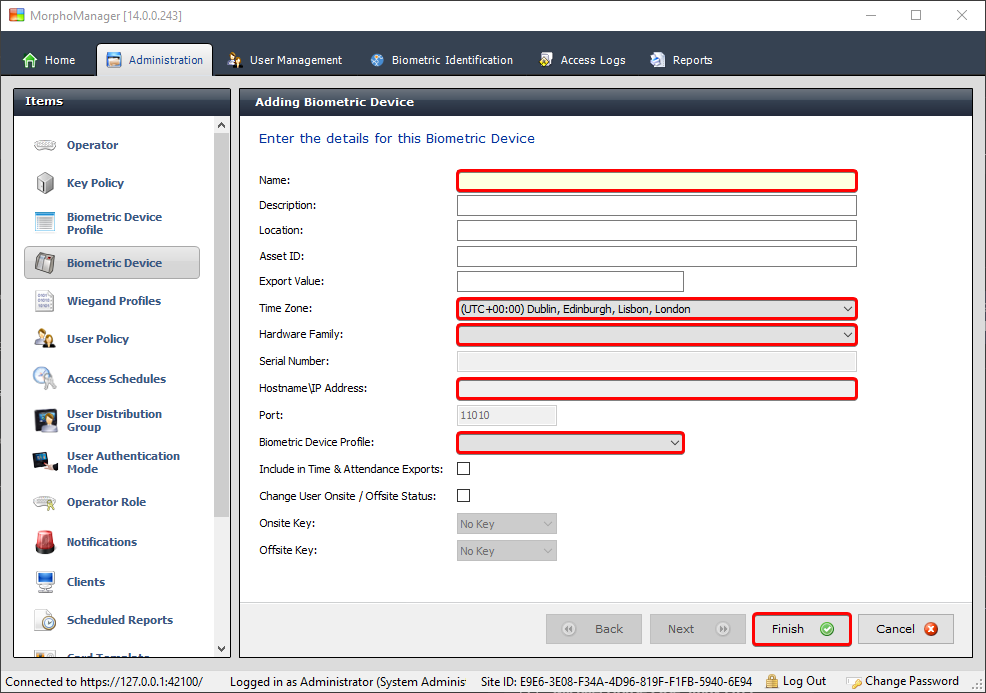

13. Fill out the minimum information shown below then click Finish -


14. Wait for the reader to show online and then check the tasks all complete at the bottom of the screen.

15. The reader will reboot during this time and once it's back online you can then continue.

16. For ACU mode, edit the default  User Policy for the correct wiegand profile settings and click finish, otherwise continue to step 17.

17. Click on  User Management then click on  Add

18. Fill out all the required details clicking Next through each screen, ensure if you are using ACU mode to match the card number with the user in the access system.

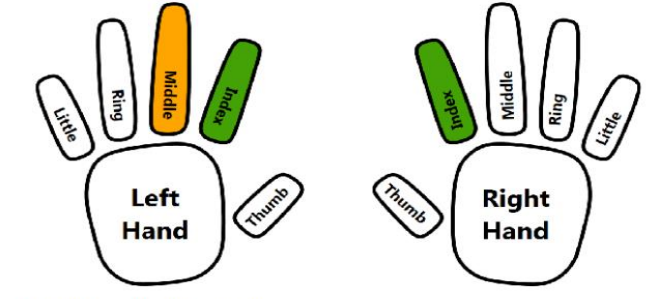

19. Ensure your MSO 300/1300 USB enrollment reader is plugged into the machine, then click on the index finger icons of each hand to enrol (minimum of 2 fingers per user), present the same finger 4 times during enrollment.


20. Test the bio reader to ensure the enrollment has been successful and the door unlocks.
